HOME >> PRODUCTS >> TIDEL 3100

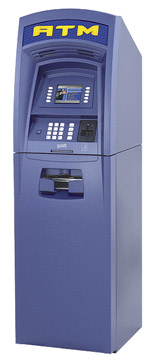

"3100 Low-End model of Tidel"

The 3100 is a versatile platform which includes the MCDM III dispenser that allows for future expandability in the field while minimizing upgrade costs. With its UL 'Listed' vault, Encrypting PIN Pad (EPP) and Triple DES (3DES) compliance, the 3100 provides you with the security you have come to expect from Tidel ATMs. Tidel has also streamlined the 3100's depth footprint to free up additional valuable floor space.

TIDEL 3100 Specifications:

MONITOR
  • 5.7" (145mm) mono display with
    320 x 240 resolution
  • Optional 6.5" (165mm) color display with
    320 X 240 resolution
KEYPAD
  • Visa Encrypting PIN Pad (VEPP)
  • Triple DES compliant
PRINTER
  • 3 1/8" (80mm) thermal graphics printer
CASH DISPENSER
  • MCDM Dispenser with 1 Lower capacity enclosed tray
  • MCDM Expansion Module With 1 enclosed tray optional
    (Dispenser supports a maximum of 2 trays)
CARD READER
  • Dip-style card reader
  • Upgradeable to smart card technology
SECURITY
  • UL 291 Business Hours 'Listed' Vault
  • Dial Combination Vault Lock
  • Cencon System 2000 Electronic lock optional
  • Electronic Vault Lock with Battery optional
COMMUNICATION
  • Dial-up or TCP/IP connectivity solution optional
VOICE GUIDANCE
  • Private Audio Transactions
HARDWARE
  • 3MB Memory
  • Surge Suppressor optional
  • 15" Static backlit high topper optional
  • 15" Full motion video high topper with sound optional
OPERATING ENVIRONMENT
  • Power Consumption:
    2.6A @ 100-250 VAC @ 50/60 Hz
DIMENSIONS
  • Height: 60"
  • Width: 18"
  • Depth: 19.75"
  • Weight: 209 lbs
