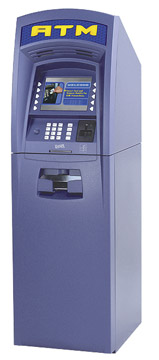

"3600 combination of 3400 with an Intel XScale® Platform "

3600 combination of 3400 model and combines them with an Intel XScale® Platform that allows for a variety of applications developed in Windows CE. Standard features include an Intel XScale Processor running at 400 MHz, 64 MB of on-board memory and a Compact Flash Card Port that allows for quicker transfer of data for upgrading system software, transaction graphics and electronic journals. The 3600 comes standard with the Tidel TCDM field expandable dispenser. The TCDM dispenser can be cost-effectively field upgraded as transaction volume grows at a location or additional applications are added such as check cashing.

TIDEL 3600 Specifications:

MONITOR
  • 10.4" (264mm) color display with
    640 x 480 resolution
KEYPAD
  • Encrypting PIN Pad (VEPP)
  • Triple DES compliant
PRINTER
  • 3 1/8" (80mm) thermal graphics printer
CASH DISPENSER
  • TCDM Dispenser with 1 high capacity cassette
  • Locking Cash Casettes optional
  • TCDM Expansion Module With Cassette optional
    (Dispenser supports a maximum of 4 cassettes)
CARD READER
  • Dip-style card reader
SECURITY
  • UL 291 Business Hours 'Listed' Vault
  • Dial Combination Vault Lock
  • Cencon System 2000 Electronic lock optional
  • Electronic Vault Lock with Battery optional
COMMUNICATION
  • Dial-up and TCP/IP connectivity solution
VOICE GUIDANCE
  • Private Audio Transactions
HARDWARE
  • 64MB on board memory
  • Surge Suppressor
  • 15" Static backlit high topper optional
  • 15" Full motion video high topper with sound optional
  • Intel XScale® Processor 400MHz
  • Compact Flash Port (32MB compact flash card standard)
  • Electronic Journal Via Compact Flash
OPERATING ENVIRONMENT
  • Power Consumption:
    2.6A @ 100-250 VAC @ 50/60 Hz
DIMENSIONS
  • Height: 60"
  • Width: 18"
  • Depth: 23"
  • Weight:
    • UL 291 Business Hour Vault and 1 Cassette 242 lbs
    • UL 291 Business Hour Vault and 2 Cassette 707 lbs
